Instrumentation 4

Sonicator

A sonicator, also known as an ultrasonic homogenizer, is a laboratory instrument that uses high-frequency sound waves to break down, disperse, and mix samples. It is commonly used for applications such as cell disruption, homogenization, emulsification, dispersion, and extraction.

The sonicator consists of a generator that produces high-frequency electrical signals, which are transmitted to a transducer. The transducer converts the electrical signals into high-frequency sound waves that are transmitted through a probe or horn. The probe is immersed in the sample to be processed, and the high-frequency sound waves create cavitation bubbles in the sample, which collapse and generate high shear forces that break down the sample.

Sonicator

Sonicators can be used for a wide range of applications, including.

• Cell disruption: Sonicators can be used to break open cells and release cellular contents, such as proteins, DNA, and RNA.
• Sonicators can be used to homogenize or mix samples, such as tissue homogenization, emulsions, and suspensions.
• Sonicators can be used to extract compounds from samples, such as plant extracts or essential oils.
• Sonicators can be used to remove bubbles or gas from samples, such as in preparing buffers or solvents.
• Sonicators can be used to reduce the size of particles, such as in preparing nanoparticles or liposomes.
• Sonicators can be used to clean instruments or surfaces by generating high-frequency sound waves that create cavitation bubbles that clean and remove debris.



Sonicators can be operated at different power levels and frequencies, depending on the sample type and desired application. Higher power levels and frequencies are typically used for more difficult or complex samples, while lower power levels and frequencies are used for delicate or sensitive samples. The type of probe or horn used can also affect the processing efficiency and sample quality.

working of a Sonicator

1. The working of a sonicator involves the use of high-frequency sound waves to break down, disperse, and mix samples. The instrument consists of three main components: a generator, a transducer, and a probe or horn.
2. The generator produces high-frequency electrical signals, typically in the range of 20 kHz to 40 kHz, which are transmitted to the transducer. The transducer converts the electrical signals into high-frequency sound waves that are transmitted through the probe or horn.
3. The probe or horn is immersed in the sample to be processed, and the high-frequency sound waves create alternating cycles of compression and rarefaction in the sample. During the rarefaction cycle, the pressure in the sample decreases, and this can cause small cavitation bubbles to form. When the sound waves hit the bubbles during the compression cycle, they can cause them to rapidly collapse, generating high shear forces that break down the sample.
4. The sonicator can be operated at different power levels and frequencies, depending on the sample type and desired application. Higher power levels and frequencies are typically used for more difficult or complex samples, while lower power levels and frequencies are used for delicate or sensitive samples.
5. Different types of probes or horns can be used depending on the sample type and volume. For example, a small probe can be used for processing small volumes of samples in microcentrifuge tubes, while a larger horn can be used for processing larger volumes of samples in beakers or flasks.



Advantages of sonicators

• Sonicators can efficiently process samples by generating high shear forces that break down the sample, resulting in more efficient and consistent results compared to manual processing.
• Sonicators are versatile instruments that can be used for a wide range of applications, including cell disruption, homogenization, emulsification, dispersion, extraction, and particle size reduction.
• Sonicators are easy to use and can be operated with minimal training, making them ideal for use in busy laboratory environments.
• Sonicators can provide reproducible results by allowing precise control of processing parameters, such as power level, frequency, and processing time.
• Sonicators can be used to process samples without the need for harsh chemicals or high temperatures, which can preserve the integrity of sensitive samples.



Disadvantages of sonicators

• Sonicators can generate heat during processing, which can affect the sample quality or integrity. This can be addressed by using cooling measures, such as using an ice bath, to prevent sample heating.
• Sonicators can cause sample loss due to the formation of bubbles, which can cause some of the sample to be ejected from the tube or container. This can be minimized by using appropriate sample containers and adjusting the processing conditions.
• Sonicators can be relatively expensive compared to other laboratory instruments, which can limit their accessibility to some laboratories or research groups.
• Sonicators require regular maintenance, such as cleaning the probe or horn and replacing worn-out components, to ensure consistent performance and reliability.



Milli-Q water filtration plant

The Milli-Q water filtration plant is a laboratory water purification system that produces high-quality, ultrapure water for various laboratory applications. The system consists of several components, including a pre-treatment module, a purification module, and a storage module.

The pre-treatment module removes organic and inorganic contaminants, such as particles, bacteria, and dissolved solids, from the feed water source, which could interfere with the purification process. The pre-treatment module typically includes a combination of filters, such as activated carbon filters, and ion exchange resins.

The purified water is then sent to the purification module, which uses a combination of technologies, such as reverse osmosis, ultrafiltration, and ion exchange to remove remaining impurities, including salts, endotoxins, and nucleases. The purified water is then passed through a final polishing step using a mixed bed ion exchange resin, which ensures that the water is of the highest purity.

The purified water is stored in a dedicated storage module, which typically includes a pressurized tank and a final filter to maintain water quality. The purified water is dispensed using a dedicated dispensing unit that is designed to prevent recontamination.

The Milli-Q water filtration plant can produce water of different qualities, ranging from Type 1 ultrapure water, which is suitable for high-end applications such as molecular biology, to Type 3 laboratory-grade water, which is suitable for general laboratory use. The quality of the water is determined by the level of impurities that are present in the final product.

Overall, the Milli-Q water filtration plant is a highly efficient and reliable system that provides laboratory-grade water of different qualities for various laboratory applications. The system is easy to operate and maintain, and it ensures consistent water quality, which is essential for accurate and reliable experimental results.

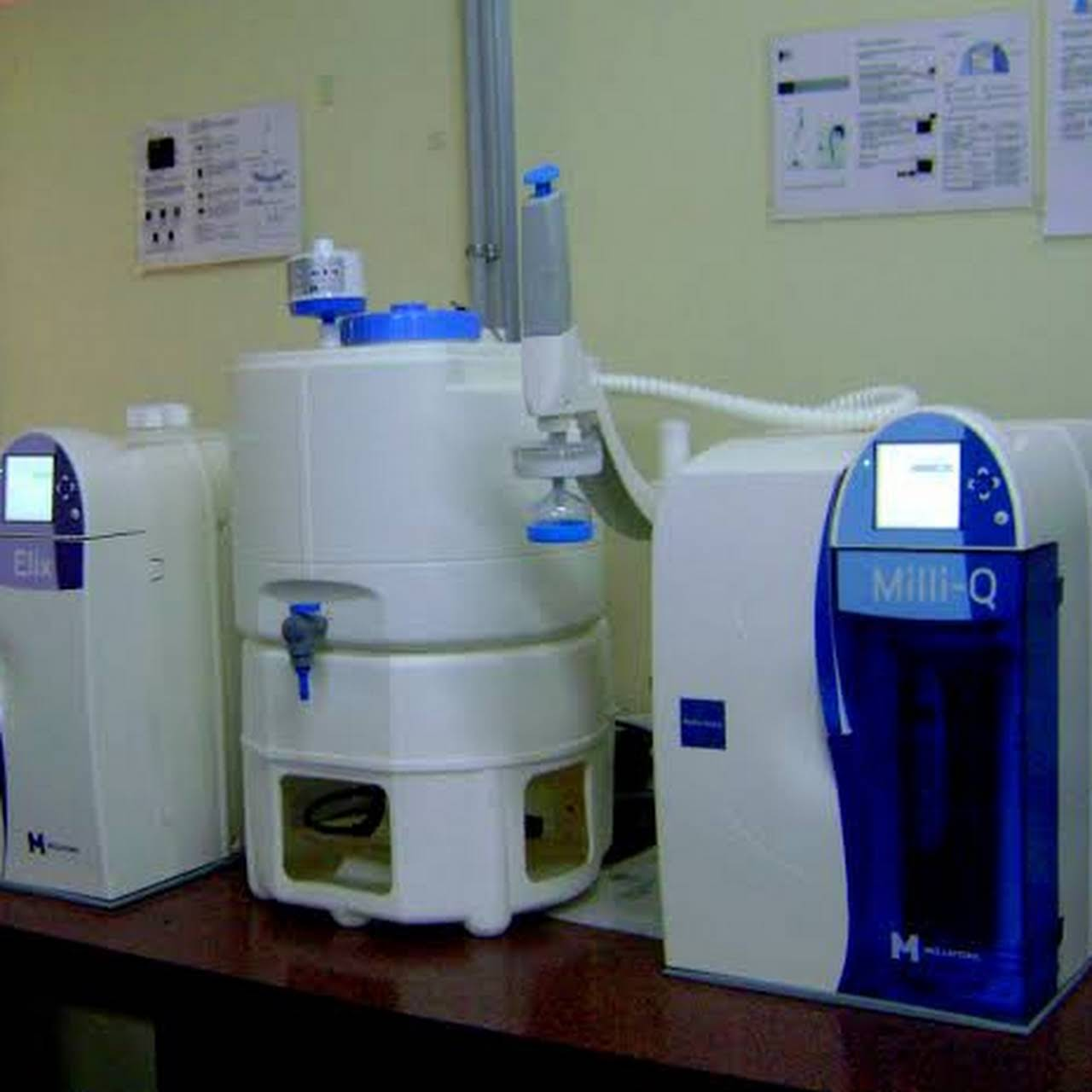

Milli-Q water filtration plant

Advantages of Milli-Q water filtration plant

• The Milli-Q water filtration plant produces ultrapure water that is free of contaminants, making it suitable for high-end applications, such as molecular biology, where the presence of even trace amounts of impurities can affect experimental results.
• The Milli-Q water filtration plant can produce water of different qualities, ranging from ultrapure water to general laboratory-grade water, making it suitable for various laboratory applications.
• The Milli-Q water filtration plant can produce high-quality water at a lower cost compared to purchasing pre-packaged water or using other purification methods, such as distillation.
• The Milli-Q water filtration plant produces water with consistent quality, ensuring that experimental results are reproducible and reliable.
• The Milli-Q water filtration plant is easy to operate, and the process is automated, reducing the need for manual intervention and ensuring consistent water quality.



Disadvantages of Milli-Q water filtration plant

• Initial investment cost: The Milli-Q water filtration plant can be relatively expensive to purchase and install, which can limit its accessibility to some laboratories or research groups.
• The Milli-Q water filtration plant requires regular maintenance, such as replacing filters and resins, to ensure consistent performance and reliability. The cost of maintenance can add up over time.
• The Milli-Q water filtration plant produces wastewater during the purification process, which can be a concern in regions with limited water resources.
• The Milli-Q water filtration plant requires electricity to operate, which can add to the laboratory's energy consumption.



Applications of Milli-Q water filtration plant

• The ultrapure water produced by the Milli-Q water filtration plant is essential for various molecular biology applications, such as DNA sequencing, PCR, and protein analysis.
• The Milli-Q water filtration plant is used in various analytical chemistry applications, such as HPLC, LC-MS, and ICP-MS, where the presence of contaminants in water can affect analytical results.
• The Milli-Q water filtration plant is used in cell culture applications, where the purity of the water is critical for cell growth and viability.
• The Milli-Q water filtration plant is used in microbiology applications, such as bacterial culture and media preparation, where the presence of contaminants in water can affect the growth and viability of microorganisms.
